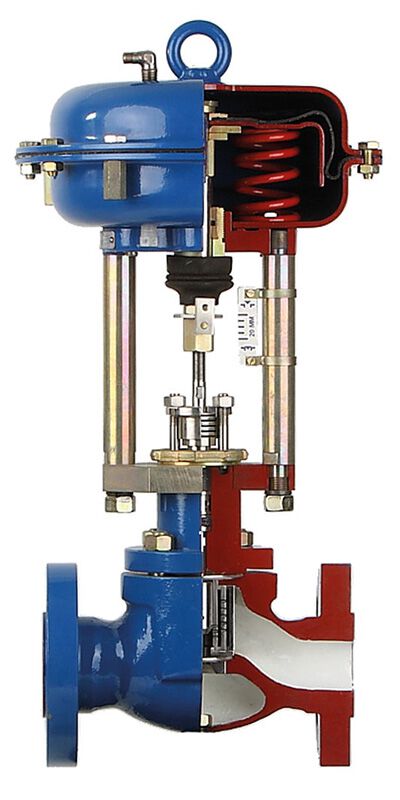

High-performance control valve BR 12

The High-performance control valve BR 12 is used in automated industrial installations to control the flow of steam, gases and liquids. The wide range of materials, different configuration options and excellent pressure and temperature parameters allow the valve to be used even under the most difficult operating conditions and make it especially popular in the power plant sector.

Nominal sizes: DN 15; 20; 25; 40; 50; 80; 100; 150; 200; 250 ( DN 300 after technical clarification)
Nominal pressure: PN10 - PN420 or ANSI CL150 - CL2500
Face to face DIN EN 60534-3-1 or ANSI B16.10
Kvs-values of 0,1 up to 800 (larger Kvs-values upon consultation)
Characteristic curves: equal percentage, linear, OPEN/SHUT
Leakage classes (according to DIN EN 60534-4): IV (< 0,1 % Kvs); V (ground in)
Temperature range: -196°C to +650°C
Body materials: 1.0619 / WCB; 1.7379 / WC9; 1.6220; 1.4408 / CF8M
Configuration with flange or welding ends, TA-Luft, bellows seal bonnet possible
Version BR 12a: single or multi-stage plugs, perforated plug, perforated cage
Version BR 12b: single or multi-stage plugs, balanced valve plug, control and additional perforated cages.
The various seat and plug combinations (parabolic, piston and perforated plug as well as various perforated cages) serve to reduce noise and cavitation, reduce wear through flashing and eliminate chocked flow.

PRE-VENT® Valves

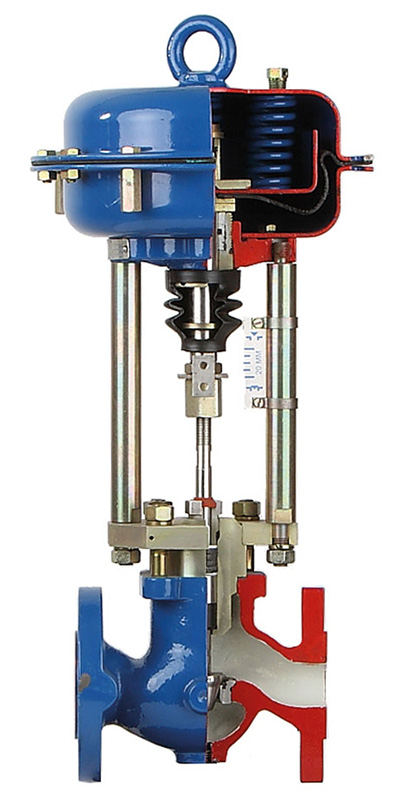

Globe control valve

BR 11

High-performance control valve

BR 12

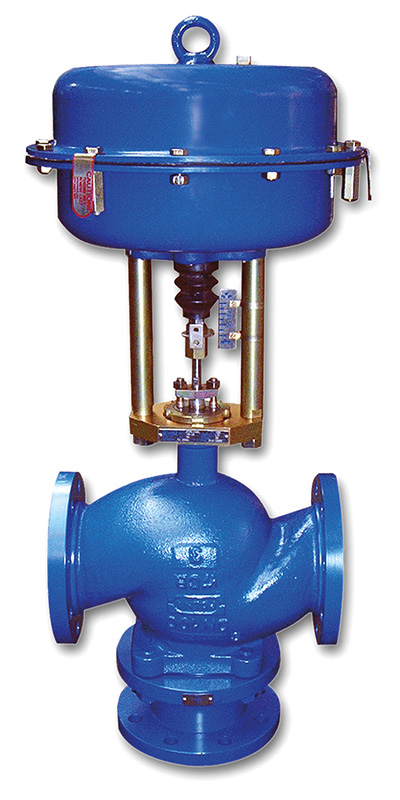

3-way valve

BR 13

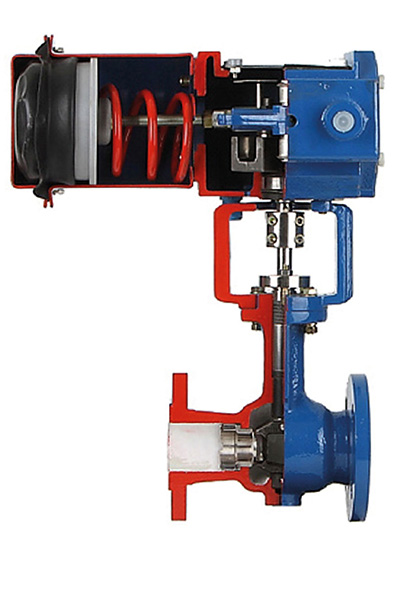

Rotary plug valve

BR 33

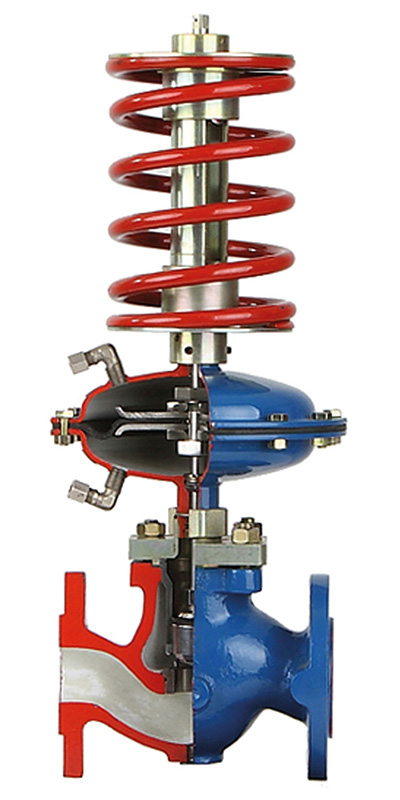

Pressure regulator

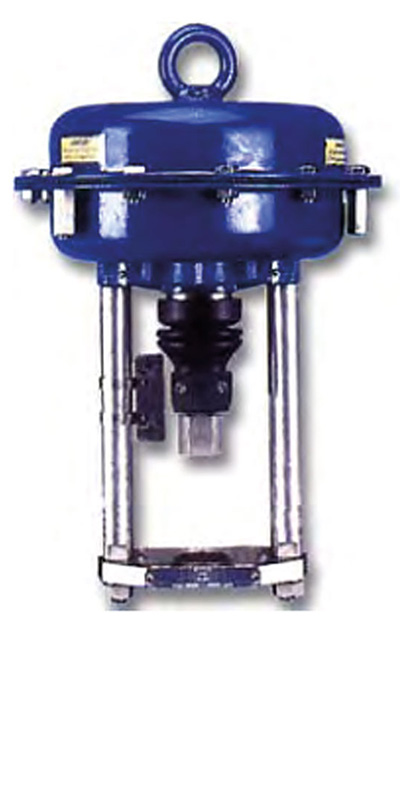

Pneumatic actuators

P/R und P1/R1

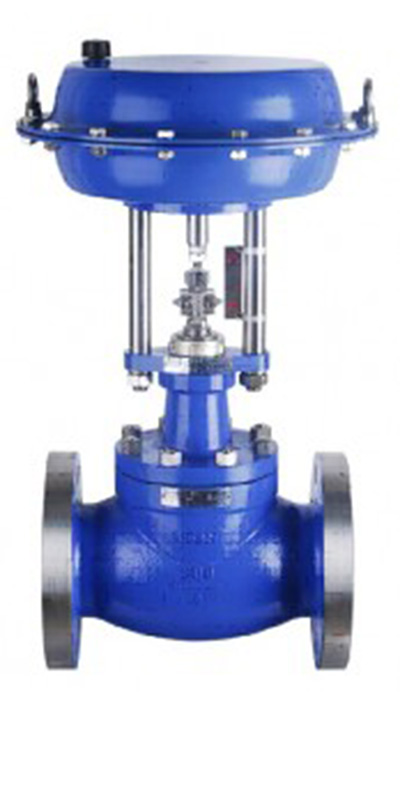

Standard control valve
